Coolius 2000 - (Art.no. 0900764971)
Notice:

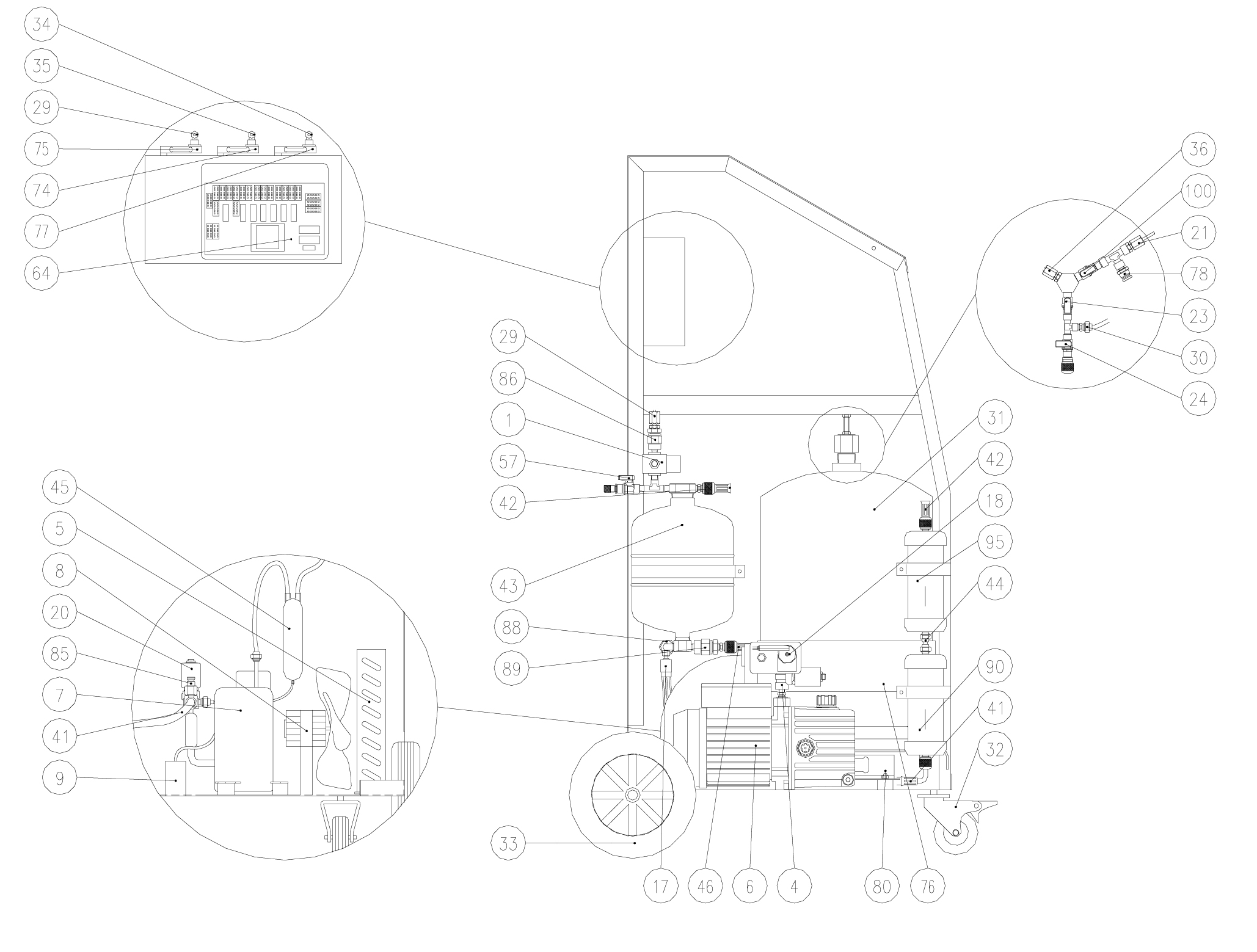

Please note that some parts only exist in the exploded drawings but not in the spare parts table.
These parts can not be ordered separately!
To maintenance parts
Service unit parts

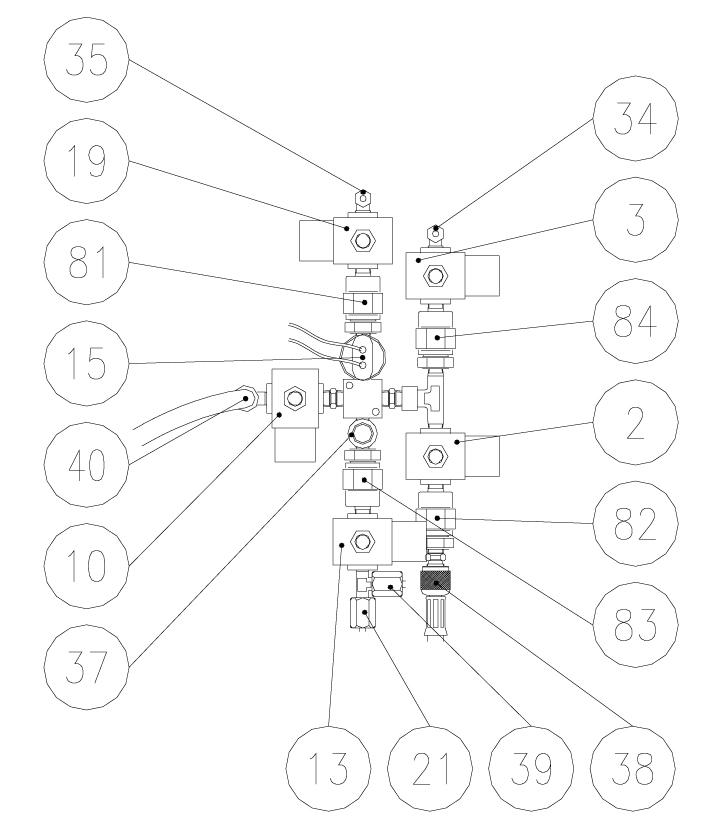

| Pos | Article No. | Designation | Serial-No | Picture |
|---|---|---|---|---|
| 1 | 0707764007 | Solenoid valve | 001 - 920 |  |
| 1 | W052200070 | Solenoid valve | from 921 |  |
| 2 | 0707764007 | Solenoid valve | 001 - 920 |  |
| 2 | W052200070 | Solenoid valve | from 921 | |

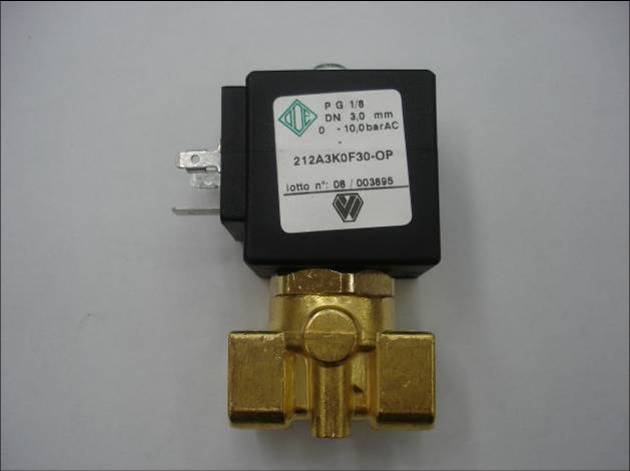

| 3 | 0707764007 | Solenoid valve | 001 - 920 |  |
| 3 | W052200070 | Solenoid valve | from 921 | |

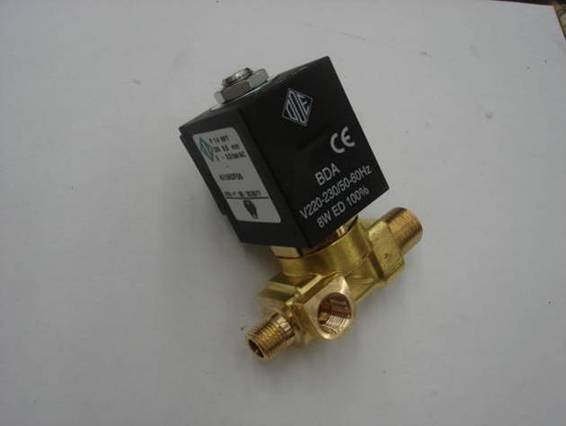

| 4 | 0707764203 | Solenoid valve | 001 - 020 |  |

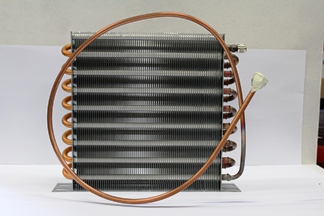

| 5 | W052200003 | Condenser | all |  |

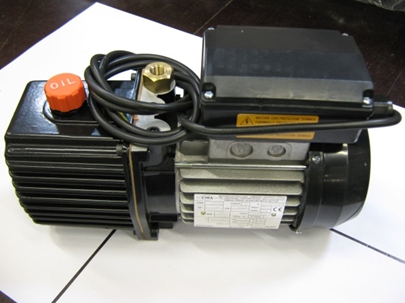

| 6 | 0707764259 | Vacuum pump | 001 - 1070 |  |

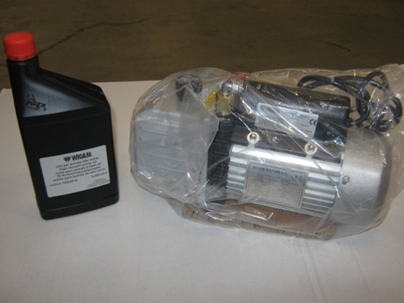

| 6 | W052200121 | Vacuum pump | from 1071 |  |
| 7 | W052200002 | Compressor | 001 - 920 | |
| 7 | W052200117 | Compressor | from 921 | |

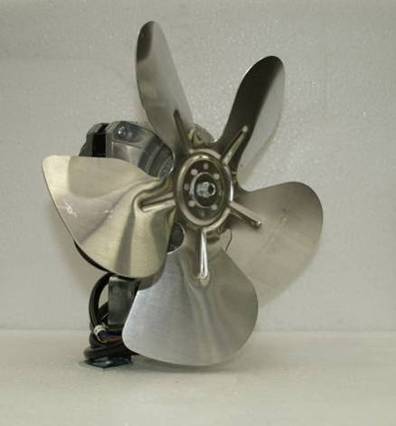

| 8 | 0707764058 | Fan | all |  |

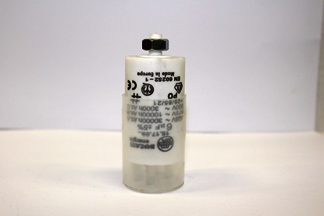

| 9 | W052200017 | Condenser | all |  |
| 10 | 0707764007 | Solenoid valve | 001 - 920 |  |
| 10 | W052200070 | Solenoid valve | from 921 | |
| 13 | 0707764007 | Solenoid valve | 001 - 920 |  |
| 13 | W052200070 | Solenoid valve | from 921 | |
| 15 | 0707764046 | Pressure vacuum switch | 001 - 020 |  |

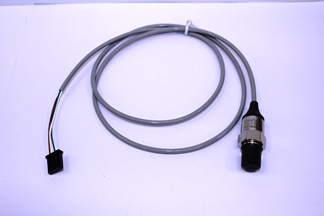

| 15 | W052200064 | Pressure transducer | from 021 |  |

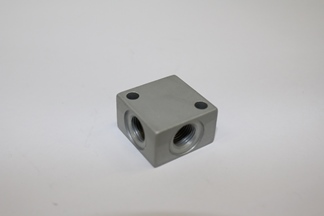

| 0900901695 | T-connection for pressure sensor | all |  | |
| W052200143 | Connector pressure sensor | all | ||

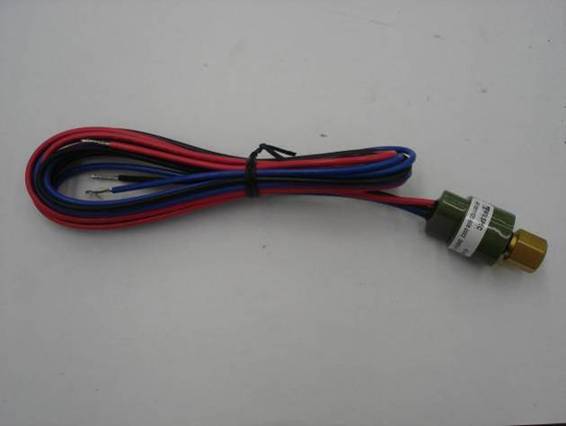

| 17 | 0900900603 | Safety switch | all |  |

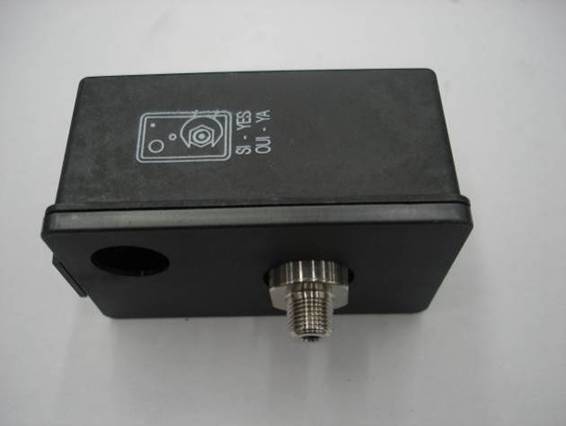

| 18 | 0707764014 | Vacuum switch | 001 - 020 |  |
| 19 | 0707764007 | Solenoid valve | 001 - 920 |  |
| 19 | W052200070 | Solenoid valve | from 921 | |

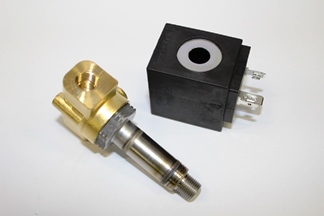

| 20 | 0707764025 | Solenoid valve | all |  |
| 20 | W052200114 | Solenoid valve | from 921 | |
| 21 | W052200089 | Capillary tube | all |  |

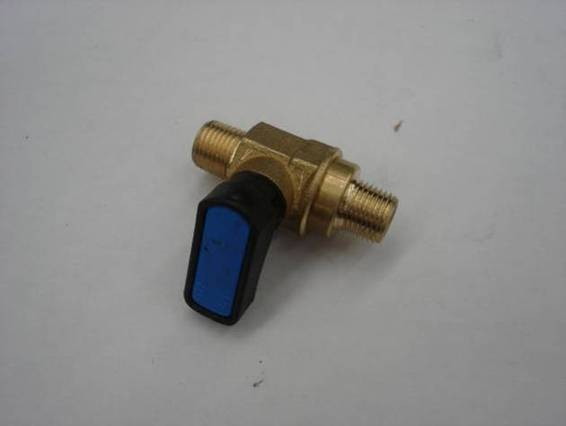

| 23 | 0707764208 | Valve on the bottle | all |  |

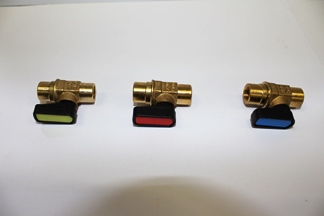

| 24 | 0707764001 | Bottle service valve | all |  |

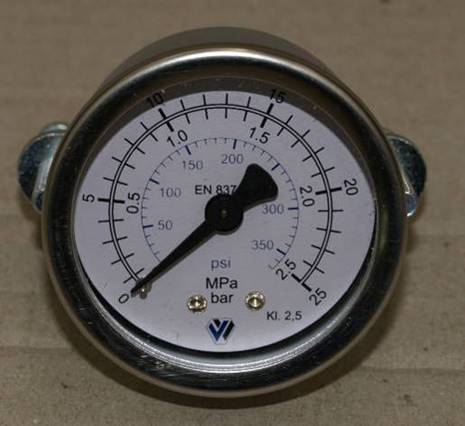

| 27 | 0707764210 | Bottle pressure gauge | all |  |
| 29 | W052200089 | Capillary tube | all |  |
| 31 | W052200004 | Bottle - 2000 | all | |

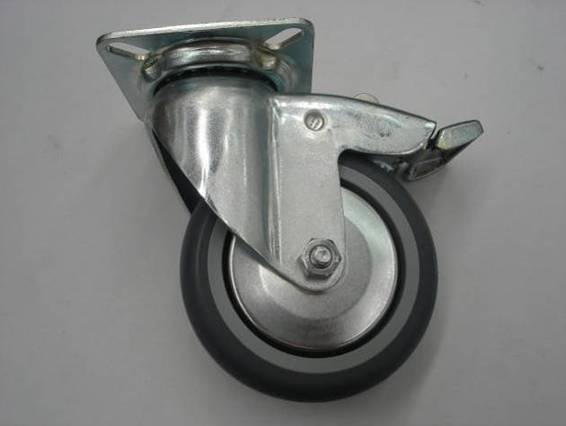

| 32 | W052200111 | Rotating wheel | all |  |

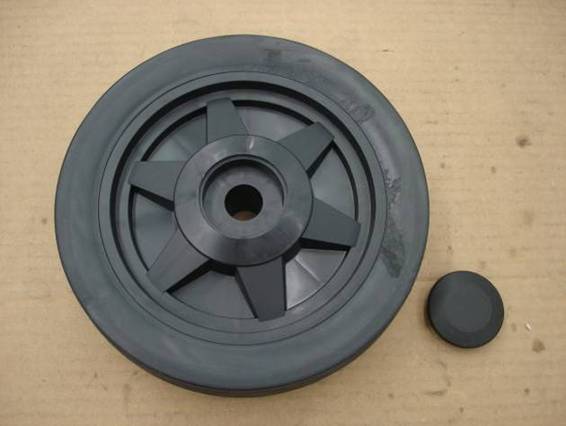

| 33 | 0707764214 | Wheel Ø 20cm | all |  |
| 34 | W052200089 | Capillary tube | all |  |

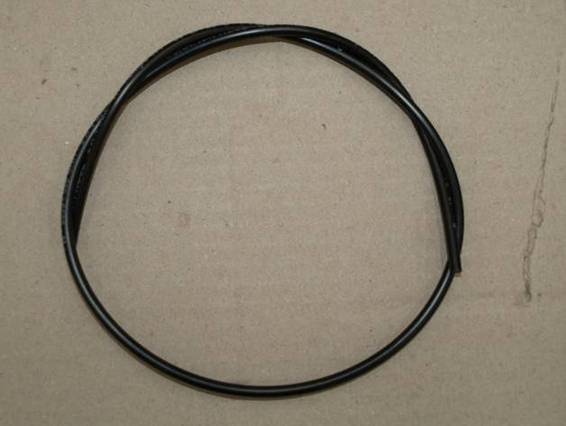

| 35 | W052200089 | Capillary tube | all |  |
| 36 | W052200089 | Capillary tube | all |  |
| 37 | W052200005 | Hose - 2000 | all | |
| 38 | W052200115 | Oil separator suction line hose | 001 - 020 |  |
| 38 | W052200116 | Oil separator suction line hose | from 021 | |
| 39 | W052200089 | Capillary tube | all |  |

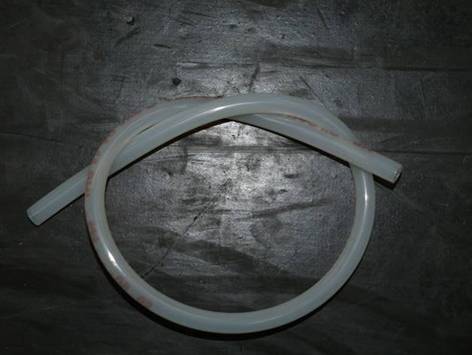

| 40 | 0707764220 | Vacuum hose | all |  |
| 41 | W052200006 | Hose - Compressor | all |  |
| 42 | W052200007 | Hose - oil separator | all |  |

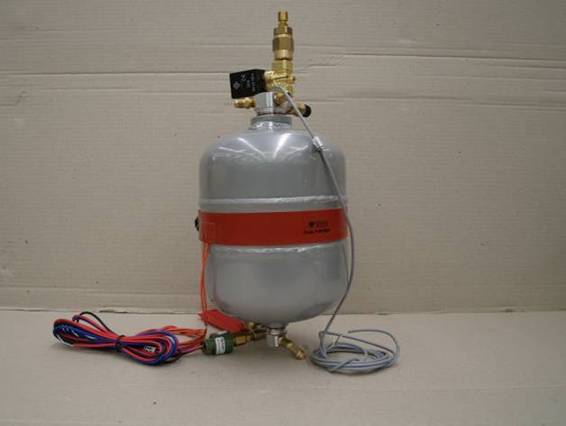

| 43 | W052200008 | Oil separator | 001 - 920 |  |

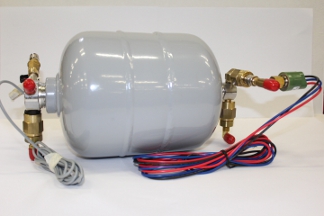

| 43 | W052200119 | Oil separator | from 921 |  |

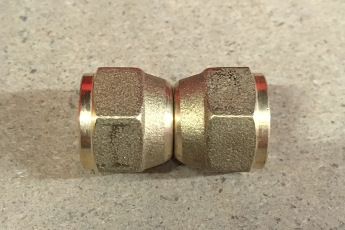

| 44 | W052200009 | Fitting - 1/4" | all |  |

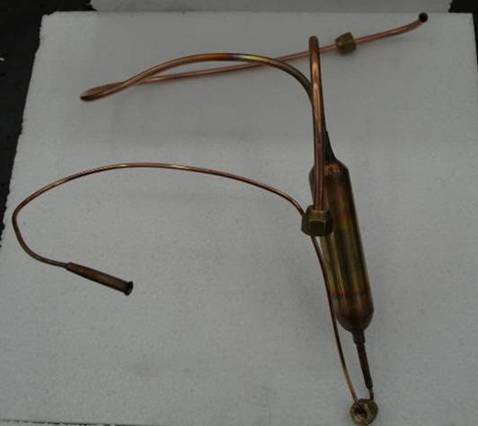

| 45 | 0707764225 | Compressor lubricant distiller | all |  |

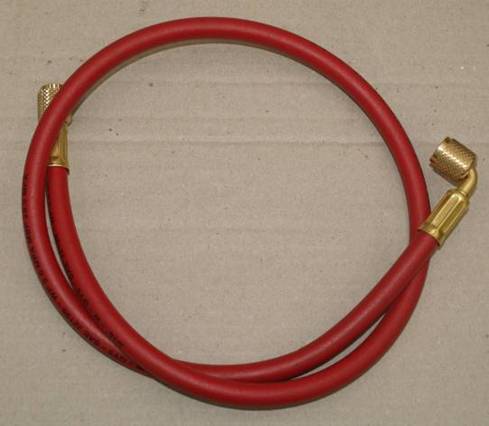

| 46 | W052200010 | Hose - Connection - 2000 | all |  |

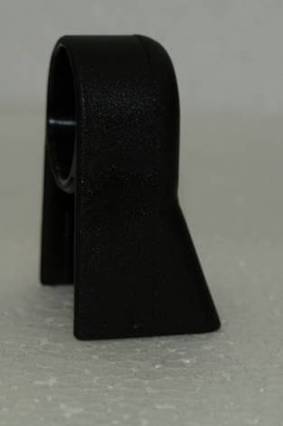

| 47 | 0707764227 | Handle support | all |  |

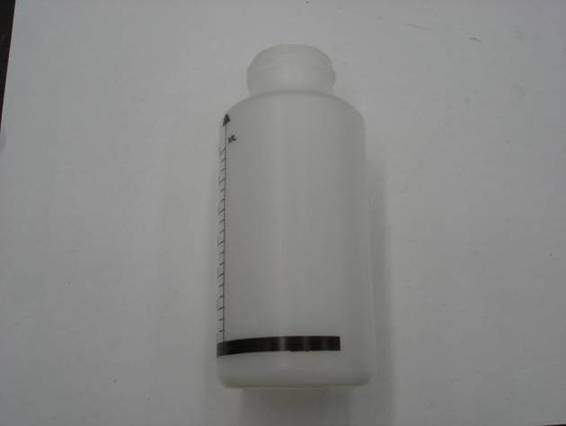

| 48 | W052200113 | Oil drain bottle incl. lid (black) | all |  |
| 49 | W052200113 | UV dosimeter incl. lid (black) | all |  |
| 50 | W052200113 | Oil dosimeter incl. lid (black) | all |  |

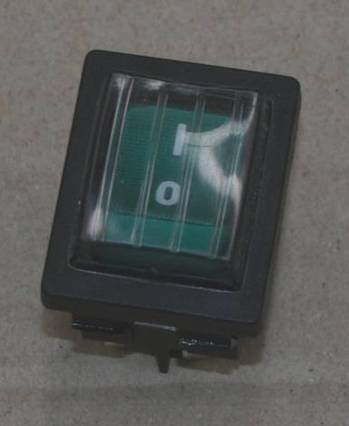

| 51 | 0900900643 | Heater switch | all |  |

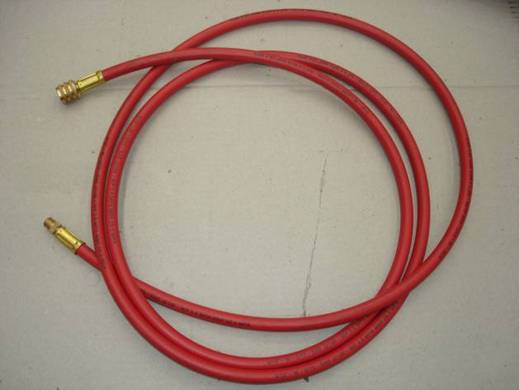

| 52 | 0707764228 | High pressure hose 3000 mm | all |  |
| 52 | W067000002 | High pressure hose 6000 mm | all |  |

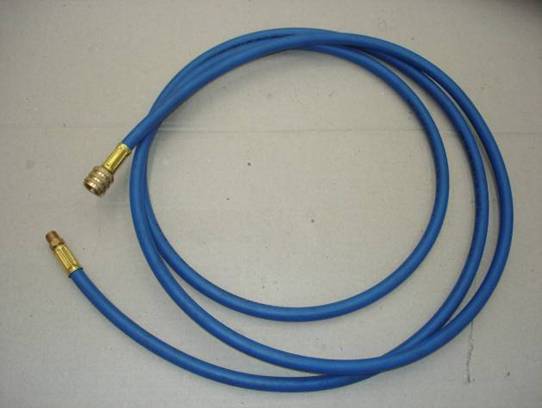

| 53 | 0707764229 | Low pressure hose 3000 mm | all |  |
| 53 | W067000003 | Low pressure hose 6000 mm | all |  |
| 0900901698 | Brass fitting | all |  | |
| 0900901699 | Brass fitting | all |  | |
| 54 | W052200090 | Power cable (Europe standard) | all |  |

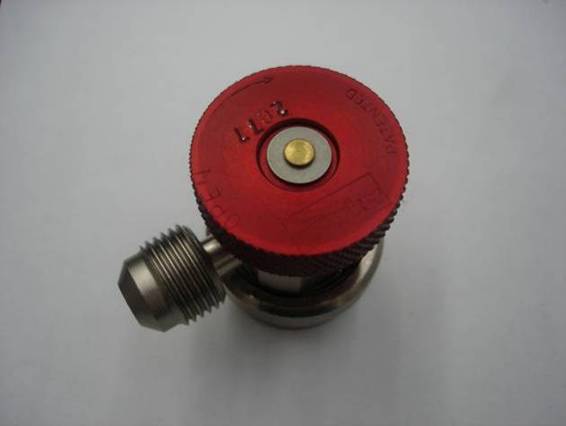

| 55 | 0707764019 | HP quick coupler | all |  |

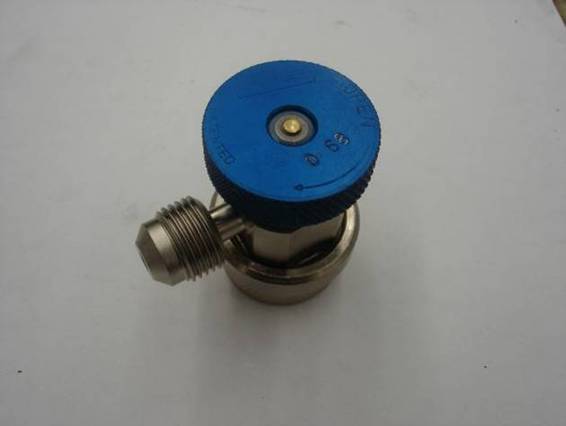

| 56 | 0707764020 | LP quick coupler | all |  |

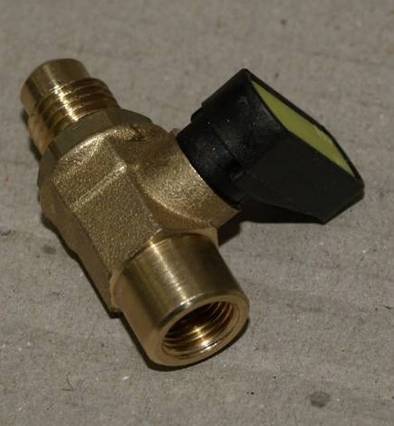

| 57 | 0707764041 | Manual discharge valve on distiller | all |  |

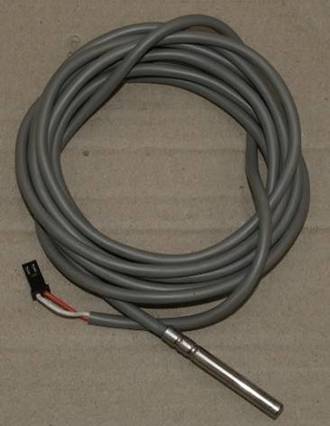

| 58 | 0707764231 no longer available | Temperature probe | all |  |

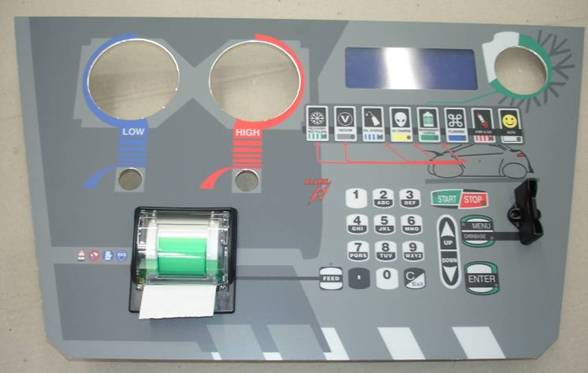

| 60 | no longer available | Console - Compl. - 2000 | all |  |

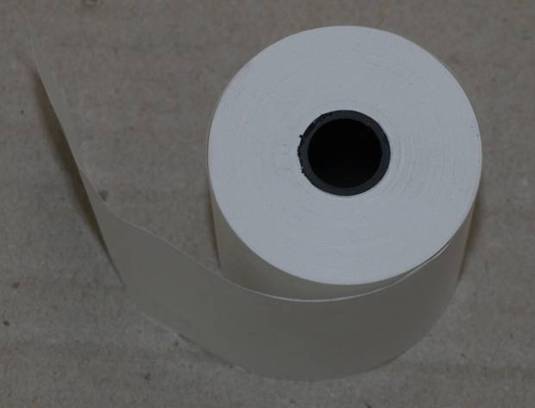

| 61 | 076495 002 | Paper roll-A/C-printer | all |  |

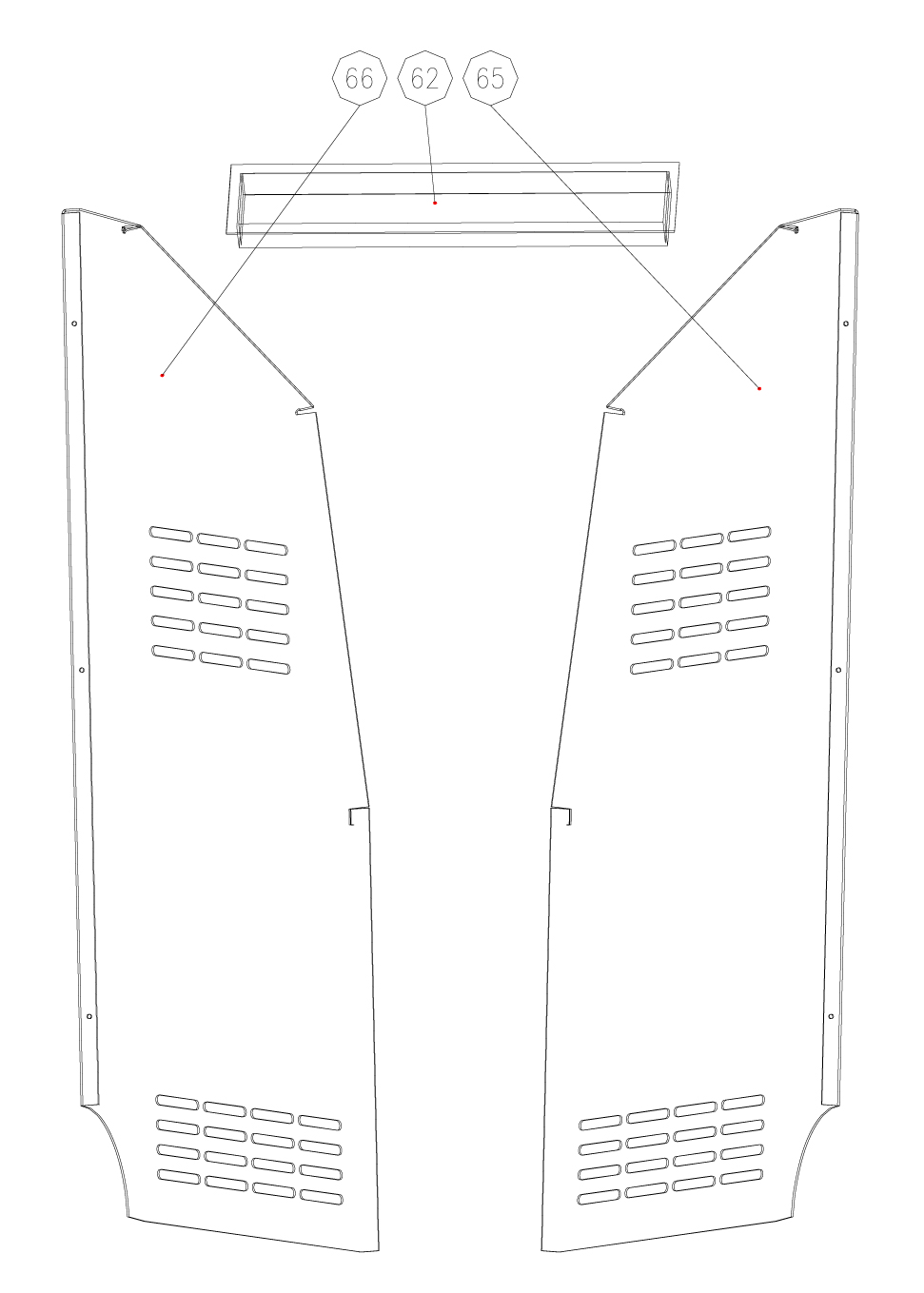

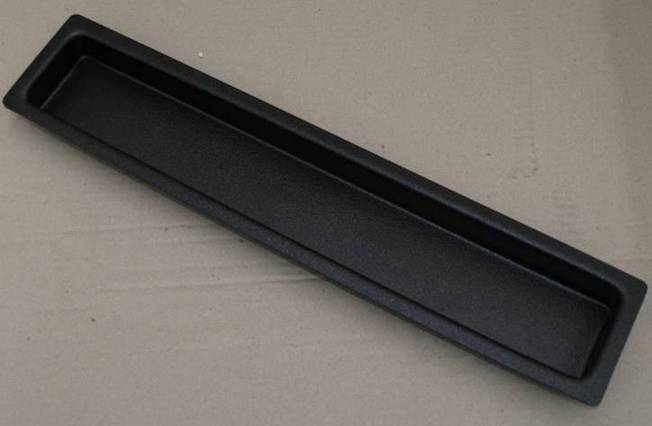

| 62 | 0707764238 | Black plastic basin | all |  |

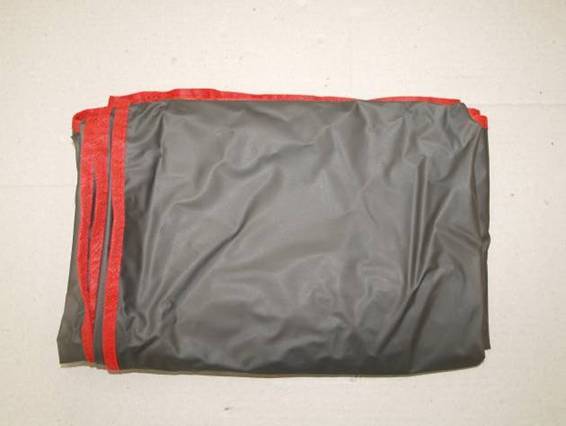

| W052200120 | Protection cover | all |  | |

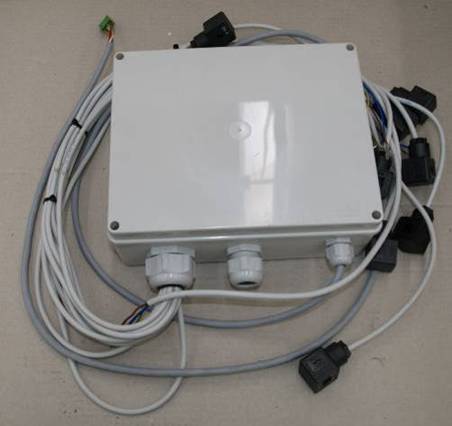

| 64 | W052200014 | Frame - Cards - 2000 | all |  |

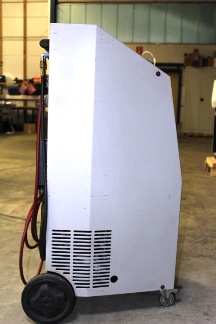

| 65 | W052200015 | Cover - Right | all |  |

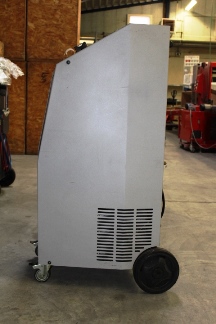

| 66 | W052200016 | Cover - Left | all |  |

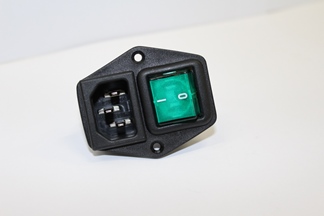

| 67 | W052200001 | Main switch | all |  |
| 68 | W052200077 | Low pressure gauge | all |  |

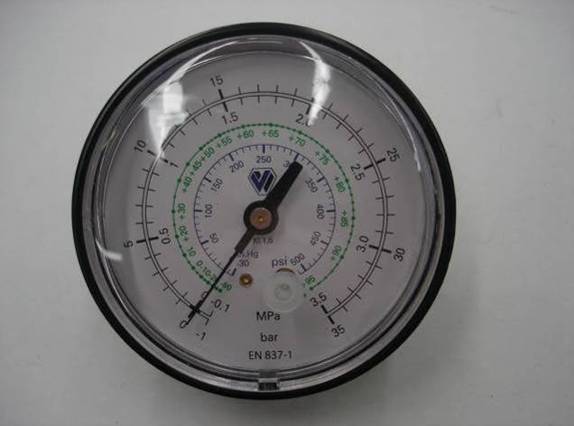

| 69 | W052200078 | High pressure gauge | all |  |

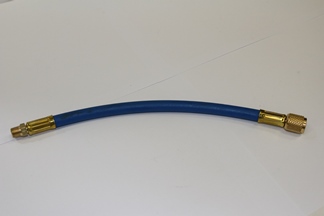

| 70 | W052200011 | Hose - Lowpressure | all |  |

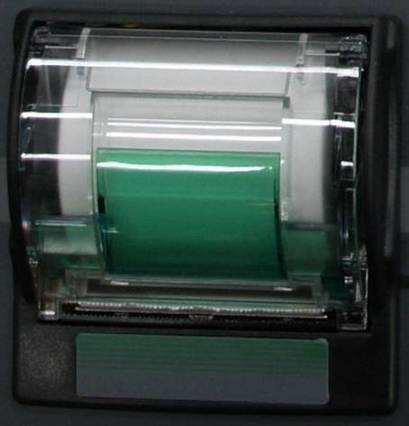

| 71 | no longer available | Printer | all |  |

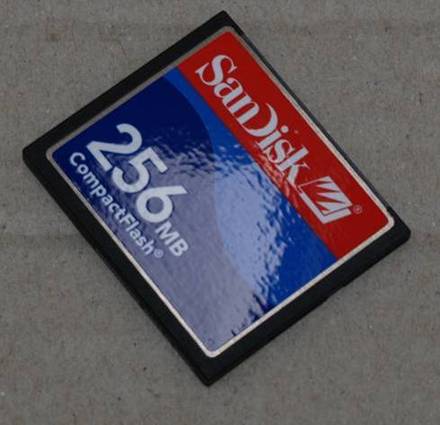

| 72 | 0707764241 | Memory card | all |  |
| 72 | no longer available | Update card | all | |

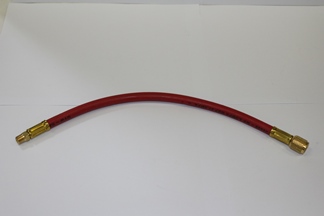

| 73 | W052200012 | Hose - Highpressure | all |  |
| 74 | 0707764232 | Oil load cell | all |  |
| 75 | 0707764232 | Oil drain load cell | all |  |

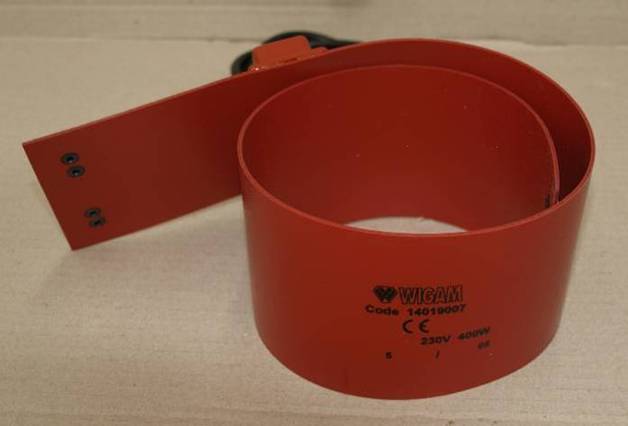

| 76 | 0707764034 | Heater on the bottle 400W + 2 springs | all |  |

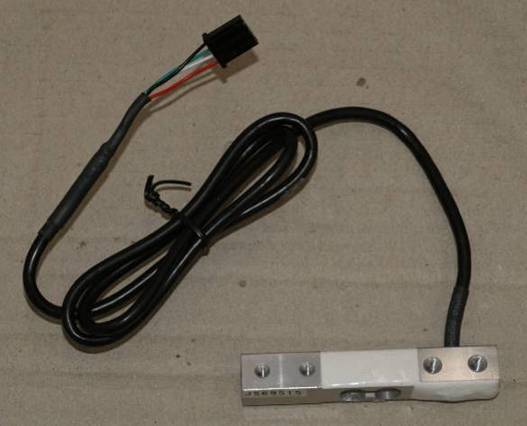

| 77 | 0707764232 | UV load cell | all |  |
| 79 | 0900900613 | Safety valve | all |  |
| 80 | 0707764235 | Refrigerant load cell | all |  |
| 81 | 0707764006 | Check valve | 001 - 920 |  |
| 81 | W052200079 | Check valve | from 921 | |
| 82 | 0707764006 | Check valve | all |  |
| 83 | 0707764006 | Check valve | 001 - 921 |  |
| 83 | W052200079 | Check valve | from 921 | |
| 84 | 0707764006 | Check valve | 001 - 921 |  |
| 84 | W052200079 | Check valve | from 921 | |
| 86 | 0707764006 | Check valve | 001 - 920 |  |
| 86 | W052200079 | Check valve | from 921 | |
| 88 | 0707764006 | Check valve | all |  |
| 89 | 0707764006 | Check valve | all |  |

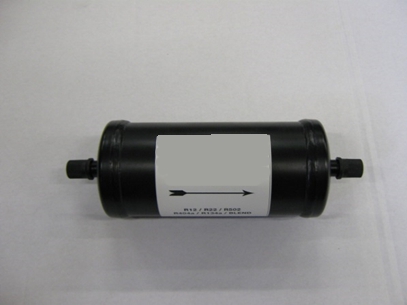

| 90 | 0707764052 | Filter dryer | all |  |
| 91 | 0707764001 | Valve 1/8" NPTf x 1/8" NPTf | all | |
| 92 | 0707764001 | Valve 1/8" NPTf x 1/8" NPTf | all | |
| 93 | W052200089 | Capillary tube | all |  |
| 94 | W052200089 | Capillary tube | all |  |
| 95 | 0707764052 | Filter dryer | all |  |

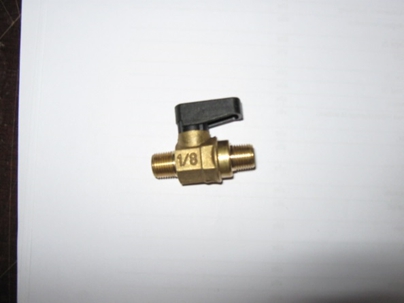

| 100 | 0707764258 | Valve on the refrigerant bottle in charging line | all |  |
| 0900900606 | Calibration load cells kit | all |  | |

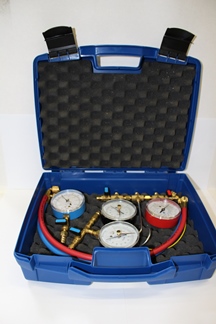

| 0900800613 | Pressure switches check kit | all |  | |

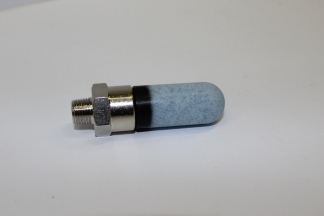

| 0900900605 | Discharge oil filter | all |  | |

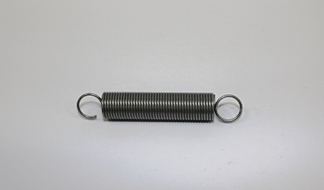

| 0900900607 | Spring for heater | all |  |
Maintenance parts
| Pos | Article No. | Designation | Serial-No. | Picture |
|---|---|---|---|---|
| 0900800610 | Maintenance kit | all |  | |
| 0707764052 | Filter dryer | all |  | |
| 0900900605 | Discharge oil filter | all |  | |
| W052200123 | Seal 3/8" | all |  | |
| W052200122 | Seal 1/4" | all |  | |
| W052200279 | Seal screw1 incl. seal ring | all |  | |
| W052200280 | Seal screw2 | all |  | |
| W052200281 | Seal ring | all |  | |
| 0892764300 | Wurth vacuum pump oil ISO 12 - 2 pcs to order! | all |
